THREADED PIPE
Classification of threaded pipes:
NPT, PT, and G are all pipe threads. NPT is a 60° taper pipe thread that belongs to the American standard and is used in North America. National standards can be found in GB/T12716-2002m.
PT is a 55° sealed tapered pipe thread, which is a type of Wyeth thread and is mostly used in European countries. The taper is 1:16. National standards can be found in GB/T7306-2000. (Mostly used in high temperature, high pressure systems and lubrication systems)
G is a 55° non-thread sealing pipe thread, which is a kind of Wyeth thread. Marked as G stands for cylindrical thread. National standards can be found in GB/T7307-2001 (mostly used for water and gas pipelines with a pressure below 1.57MPa). G is the general name of pipe thread, commonly known as pipe circle. That is, the thread is processed by a cylindrical surface. ZG is commonly known as pipe cone, that is, the thread is processed by a conical surface, and the national standard is marked as Rc (cone inner pipe thread). Both G thread and Rp thread are 55° cylindrical pipe threads. Rp is the code name of ISO.
The GB part of China's standard is equivalent to the international standard ISO. The details are as follows:
1. The fit of cylindrical internal thread (Rp) and tapered external thread (R1), referred to as "column/cone fit", my country's standard number GB/T7306.1-2000, which equivalently adopts the international standard ISO7-1: The "column/cone fit" in 1994 "pipe thread sealed with thread";
2. The fit of tapered internal thread (Rc) and tapered external thread (R2), referred to as "cone/cone fit", our country's standard number is GB/T7306.2-2000, which equivalently adopts the international standard ISO7-1 ：The "cone/cone fit" in 1999 "pipe thread sealed with thread";
3. The fit of cylindrical internal thread (G) and cylindrical external thread (G) is referred to as "column/column fit". The standard number of our country is GB/T7307-2001 "55° non-sealed pipe thread". This standard is equivalent The first part of the international standard ISO228-1: 1994 "Non-thread-sealed pipe threads" is "Dimensional tolerances and markings", but my country’s standards do not recommend the use of sealed pipe threads and unsealed pipe threads, that is (Rp /G);
1. The cold water and drainage systems adopt threaded connection when the pipe diameter is less than or equal to 50mm.
2. Pipe threading machine is used for thread processing and special threading machine oil is used for lubrication. Water or other liquids are not allowed to substitute for lubricant.
3. Lead oil and hemp wire are used for pipeline sealing and packing, and Teflon tape is used for connection with equipment. It is not allowed to bring the packing into the pipe when tightening the thread.
4. The cutting of the pipe should be done with a cutter or a hacksaw. Oxygen acetylene or cutting machine is not allowed. The inclination deviation of the end face of the cut should not be greater than 1% of the outer diameter of the pipe, and it should not exceed 3mm.
5. In order to ensure the minimum wall thickness of the thread root, it must be centered on the inner circle of the end surface of the pipe section, and the axial thread deviation and axial tilt of the pipe thread must be strictly controlled, because whether it is axial parallel deviation or axial tilt deviation, Both will seriously reduce the thickness of the pipe wall, thereby reducing the strength of the pipe.
Allowable deviation of pipe thread processing
Nominal diameter (mm) Parallel deviation (mm) Tilt deviation (mm)
1 ≤32 0.3 0.3/100
2 40~65 0.4 0.4/100
3 80~100 0.5 0.5/100
4 125~150 0.6 0.5/100
6. After the threaded pipe is processed, check it with a threaded measuring tool. If there are pipe fittings of the same specification, it is better to match the pipe fittings. The degree of looseness only needs to be screwed in by hand, and it should not be too loose if the pipe fittings are screwed in. If you get stuck, you can knock around the pipe with a wooden claw. If it still cannot be screwed in or the screw becomes tighter, it can only be withdrawn. Forcible screwing is not allowed.
7. The threaded thread should be clean and regular. The broken or missing thread should not exceed 10% of the total number of threads. The galvanized layer on the outer surface of the pipeline should be protected. The local damaged parts should be treated with anti-corrosion treatment.
8. Threaded connection The root of the pipe thread after installation of the pipe should have 2~3 exposed threads, and the excess hemp wire should be cleaned up and treated with anti-corrosion treatment.
Related products
-

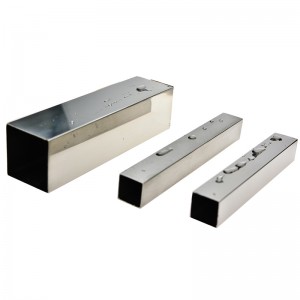

Rectangular pipe manufacturer quality assurance...
Product Advantage It can cause "infertility" and cause a decrease in immunity The longer the plastic pipe is used, the more toxic the PPR water pipe is. The plastic pipe itself has the shortcomings of light transmission and oxygen transmission. In addition, the plastic pipe wall is rough, and its chemical stability is not strong. It is easy to cause the precipitation of harmful substances and reverse osmosis. The tap water is ...
-
Stainless Steel Industrial Pipe Manufacturer
The difference between industrial pipe and decorative pipe 1. Material Stainless steel decorative pipes are generally used indoors and are generally made of 201 and 304 stainless steel. Outdoor environments are harsh or coastal areas will use 316 material, as long as the environment used is not easy to cause oxidation and rust; industrial pipes are mainly used for fluid transportation, heat exchange, etc. Therefore, the corros...
-

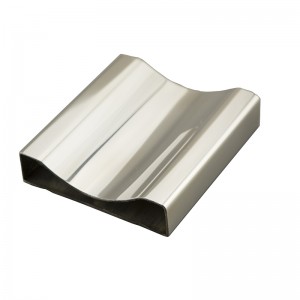

special-shaped pipe
Product Specifications 12.7*12.7mm-400*400mm, wall thickness 0.6mm-20mm, stainless steel round pipe is generally 6*1-630*28, specifications are 4 points, 6 points, 1 inch, 1.2 inch, 1.5 inch, 2 inch, 2.5 Inch, 3 inch, 4 inch, 5 inch, 6 inch, 8 inch, 102, 108, 127, 133, 139, 159, 168, 177, 194, 219, 273, 325, 377, 426, 530, 630, etc. Stainless steel special-shaped pipes generally refer to rectangular steel pipes, triangular ste...
-
Manufacturer of stainless steel round pipes tha...
Product Advantage We follow the management principle of "Excellent Quality, Excellent Service, Excellent Position", and we are dedicated to China Decoration 201 202 304 316 430 410 stainless steel pipes, and sincerely create and share success with all our customers. those who are interested. We firmly believe that our solution is right for you. China's most professional stainless steel pipe supplier, polished stainless steel w...
-

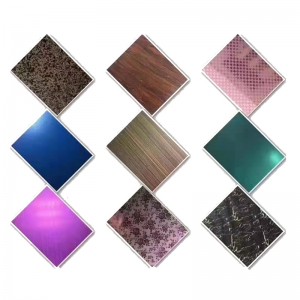

The company can customize the production of var...
